SEGA Game Gear 512Kb Flash Cartridge -- Working Prototype!!!

[Gerry_MAN]

Hi Folks,

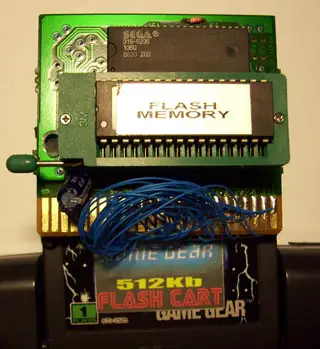

To let you all know, I have been working on a Flash cartridge for the SEGA Game Gear (1Mbyte version) for some time now. I got temporarily distracted by working on my 512Kb version.

I finally landed a working design.

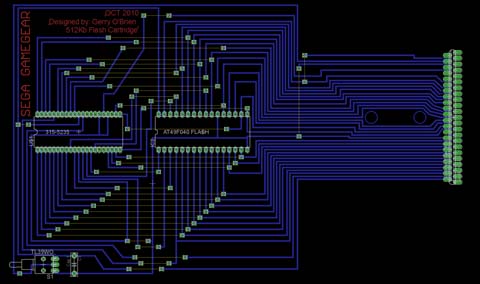

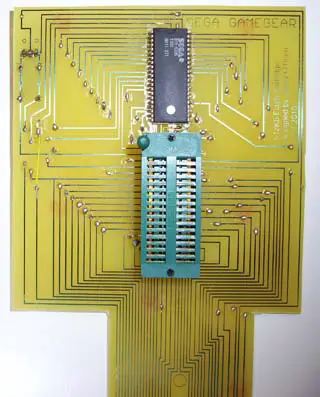

Si in turn, I compiled together a 5 Part instructional video along with a 26 Page "Step by Step" guide in PDF format for you all to follow. I have also included a Full schematic design and a PCB layout of my GIGANTIC Prototype PCB that I used during the development process.




Anyhow, there's a few ways of building this unit and I I'll leave it up to you to choose.
Hopefully the info I've supplied here will help you all to build your own 512kb Flash cart.

I'm going to continue to work on the 1Mbyte version and hopefully we can all get this sucker up and running soon.


You can access all the the documentation and Links from my Website at the link below:

http://www.digital-circuitry.com/GameGear.htm
(Site is under constructions so please excuse the crudity of the current layout)


Talk to you all later,
-Gerry
